Description
📥 Download the technical brochure (PDF)
Power and Build Quality

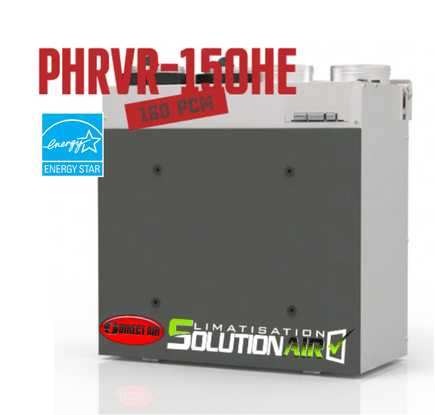

The PHRVR-150HE Direct Air Exchanger offers superior ventilation for medium to large homes. This is because it generates a powerful airflow of 160 CFM. In fact, the HE series units are manufactured by Fantech, a world reference in ventilation. As a result, you get a robust design and reliable components that stand the test of time.
To explore other models, visit our dedicated section on residential ventilation systems.
Installation and Recirculation
This model makes installation easy with its 6-inch ports located on the top. Indeed, this vertical configuration allows easy assembly in narrow mechanical rooms. Thus, the system incorporates a recirculation flap. This is why it can circulate the ambient air to even out the temperature without introducing cold outside air unnecessarily during periods of extreme cold.
Compatibility and Controls
It should be noted that the PHRVR-150HE adapts to your needs thanks to its extensive compatibility with wall controls. In this regard, it works with modern controls such as the STS2.0 touchscreen or the EDF8 electronic model. Finally, Direct Air protects your purchase with a solid warranty for complete peace of mind.
SPECIFICATION TABLE
-
Outdoor/Indoor Model: Direct Air PHRVR-150HE (463901)
-
Rated Capacity: 160 CFM
-
Duct Dimension: 6 inches (Round / Top)
-
Unit Dimensions (W x D x H): 21.5″ x 14.5″ x 17.9″
-
Control Compatibility: STS2.0, EDF8, EDF3, RTS5
-
Power Supply: 120V / 1ph / 60Hz
-
Weight: 55 lbs
-
Drain: Required
-
Filters: Washable
-
Residential Warranty: Lifetime (limited) on core, 7 years on engines, 5 years on parts
